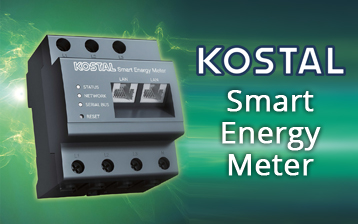

The new Smart Energy Meter by KOSTAL, which is compatible with KOSTAL inverters, is a device that measures energy in real time up to 3 phases. It has also been improved, allowing it to adapt to various functionalities.
Technical features of the Smart Meter by KOSTAL
What are the technical features granted by this product?
Usage flexibility
- 2 LAN interfaces
- 2 RS485 interfaces (Modbus RTU)
- Three-phase measurement up to 63A current
- Measurement of higher currents through current transformers
Smart performance
- High measurement precision
- Current sensors and energy manager for storage systems coupled AC side
- Intelligent control for multiple operation of various inverters
Easy to install
- Installation in the electrical panel on a DIN protocol
- Easy configuration of the device through a web interface and preset values
- Software updates with web interface
Smart connected
- Data and values visualisation
- Possibility to extend functionalities through a software update
Compatible photovoltaic inverters
The new KOSTAL Smart Energy Meter is a device that allows to measure energy in real time; this works together with KOSTAL photovoltaic inverters, such as:
PIKO 10-20, which guarantees:
- Monitors consumptions 24h per day
Kostal PIKO MP plus: 1.5-1 – 4.6-2 kW Monophase hybrid inverter, which:
- Can monitor consumptions 24h per day
- Has a ModbusRTU (RS485) preconfigured interface
- Dynamic control of active power
Kostal PLENTICORE plus: 4.2/5.5/7.0/8.5/10 kW, which:
- Can monitor consumptions 24h per day
- Has a ModbusRTU (RS485) preconfigured interface
- Dynamic control of active power
- Detects consumption for storage operations on PLENTICORE plus
- Charges the AC side storage from other generators with PLENTICORE plus
KOSTAL Smart Energy Meter
Device for real-time energy measurement. Compatible with KOSTAL photovoltaic inverters. Measure energy in real time up to 3 phases.
- Flexible in use
- Smart performance
- Smart connected
- Easy to install
Datasheet English
Fiche technique Français
Datenblatt Deutsch
Ficha de datos Español
Complete documentation
Up to 3-phase energy measurements in real time – pre-configured interfaces for connection of KOSTAL solar inverters PIKO IQ, PLENTICORE plus and PIKO MP plus.
Compatible with the KOSTAL solar inverters
– PIKO IQ,
– PLENTICORE plus,
– PIKO MP plus,
– PIKO MP,
– in the future PIKO 12-20 and PIKO 36 EPC.
Services included:
– Pre-configured RS485 interfaces for simplified commissioning
– 2 x LAN / 2 x RS485 interface
– Smart tariff display
– Measurement of active and reactive power, apparent power, current strength and power factor per phase
– Integrated Webserver for easy advanced device configuration by the installer
The core functions at a glance:
– Real-time data capture
– 3-phase energy measurement for purchase and feed-in
– Top-hat rail assembly (4 TE)
– 24h recording of home consumption
– Dynamic active power control
– Provision of battery data in combination with PLENTICORE plus
